Upward Continuous Casting Equipment
Project-configured copper upward continuous casting equipment for round rod, busbar and flat profiles, strip billet, tube billet, and approved drawing-based products. The machine, line, and system scope is selected around the material, product dimensions, capacity, handling method, utilities, and site conditions.
Product routes
Copper rod, flat copper, and tube billet do not use one universal crystallizer or handling arrangement. Each route changes the tooling, withdrawal, cooling, strand layout, collection method, and acceptance plan. The sections below remain in the page HTML so buyers and search engines can review the differences directly.
01
Produces round copper rod as feedstock for downstream wire drawing, rolling, extrusion, or forming. It does not produce finished electrical wire. Rod diameter, strand count, capacity, coil weight, and coiling method are confirmed during project review.
02

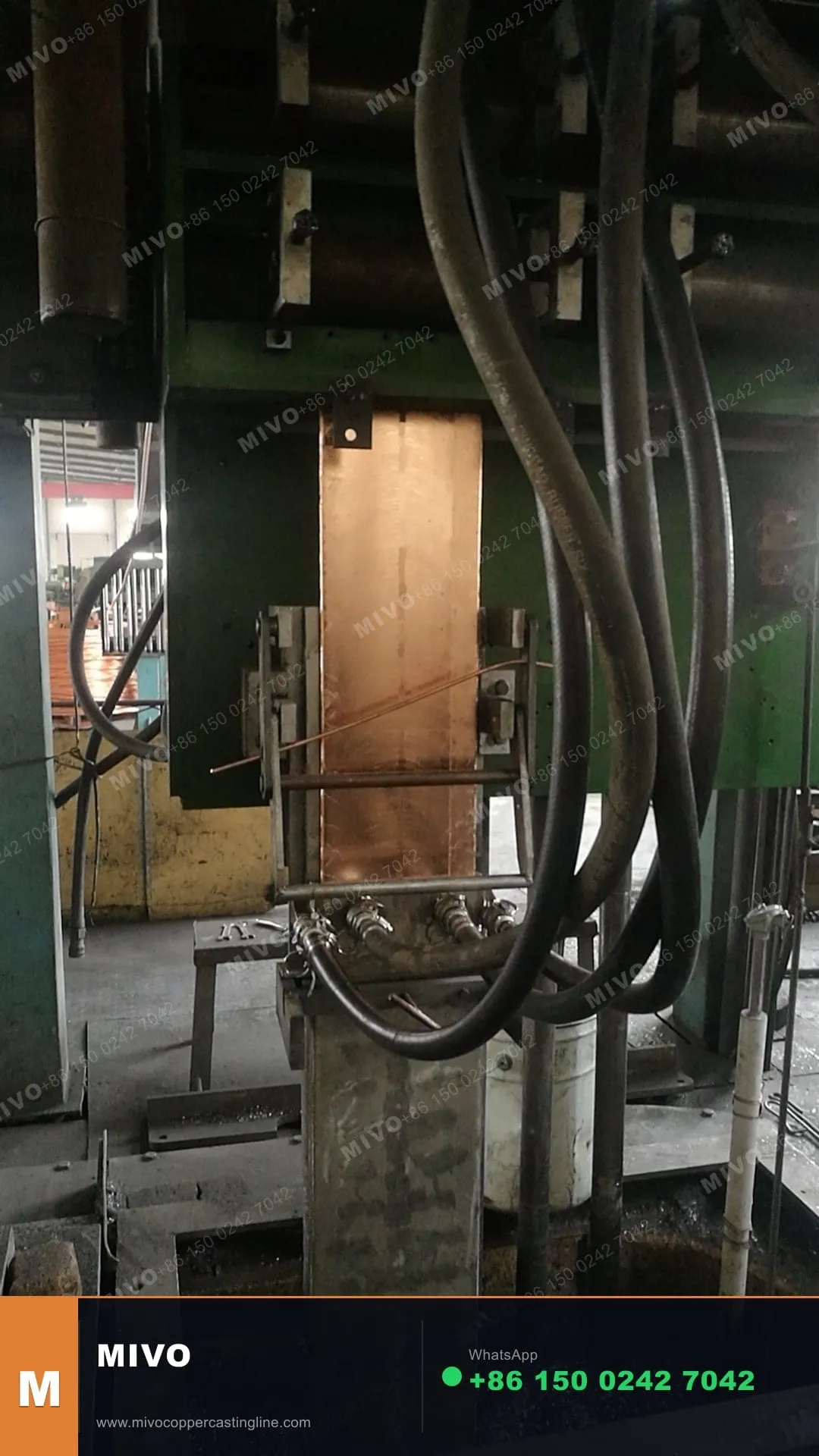

Produces cast copper busbar, flat bar, and strip billet for downstream straightening, cutting, punching, bending, rolling, or finishing. The casting line output is feedstock or a cast profile, not a fully fabricated switchgear busbar.
03
Tube and hollow-section routes are reviewed against the required outside diameter, inside diameter, wall thickness, material specification, downstream process, and collection method. Selected DHP tube systems can be evaluated after technical review.
04

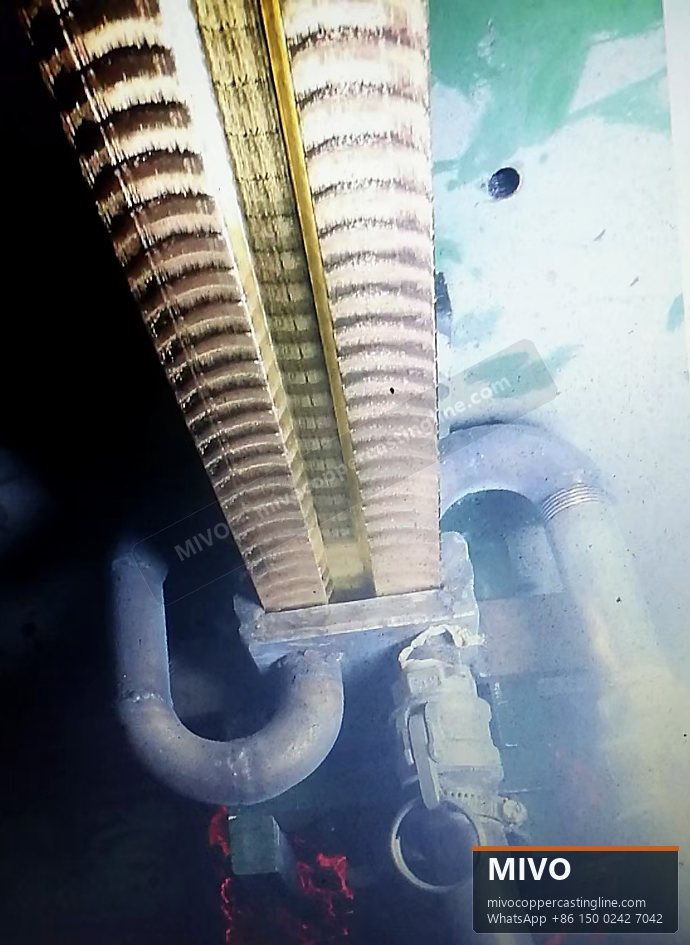

Other pure-copper shapes can be reviewed when the buyer provides a section drawing, material standard, dimensional tolerances, capacity target, downstream use, and acceptance requirements. Feasibility is not assumed from shape alone.
Equipment sequence
A quotation separates the core casting machine from the complete line or system boundary. Every item is marked as included, optional, buyer-supplied, or excluded before order confirmation.
Feed-material form, cleanliness, weighing, and charging method are agreed for the selected process.
The melting-furnace type, capacity, power, atmosphere, and operating sequence are configured by project.
The holding arrangement supports controlled metal supply and the required thermal operating window.

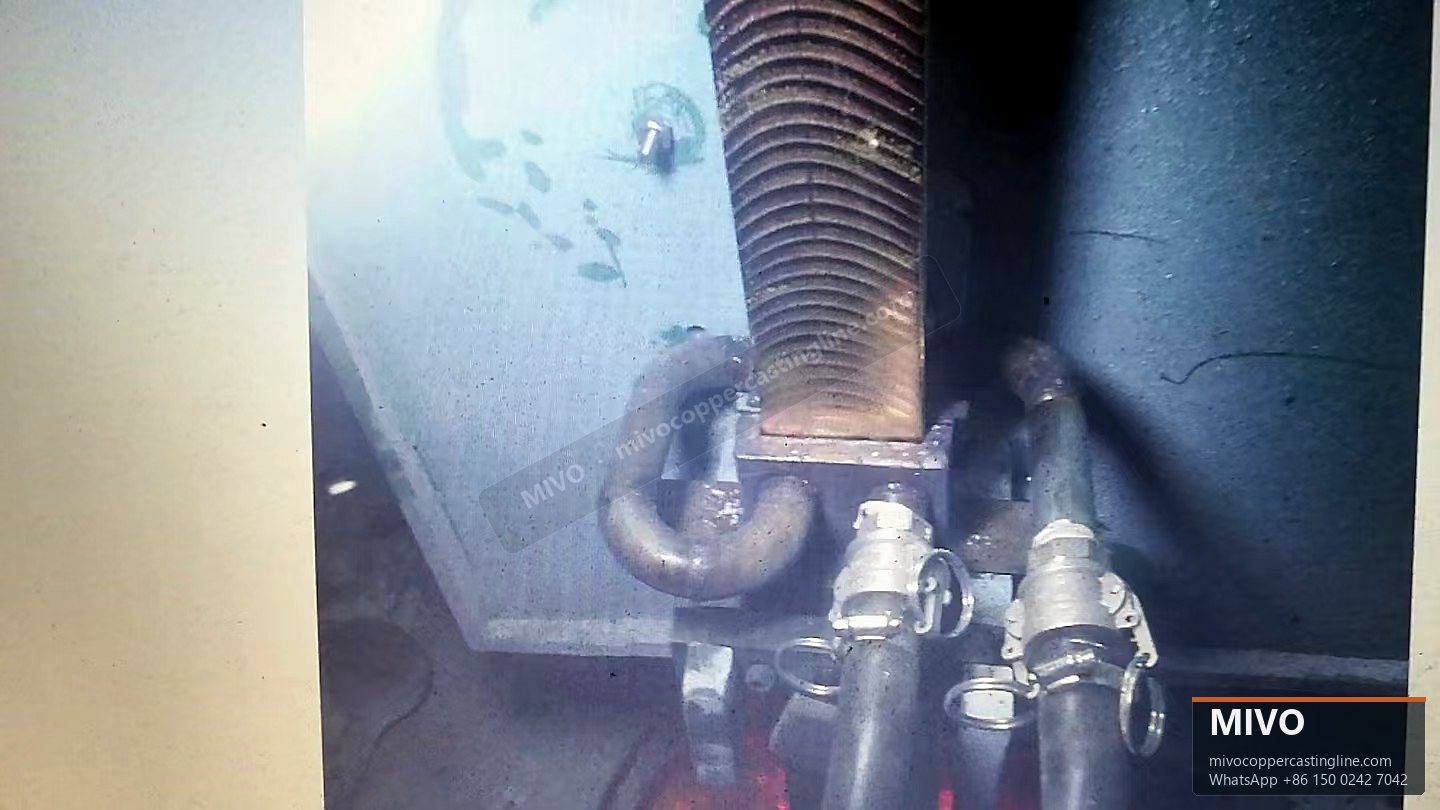

The crystallizer, graphite die, sleeve, and cooling interfaces are matched to the ordered product.

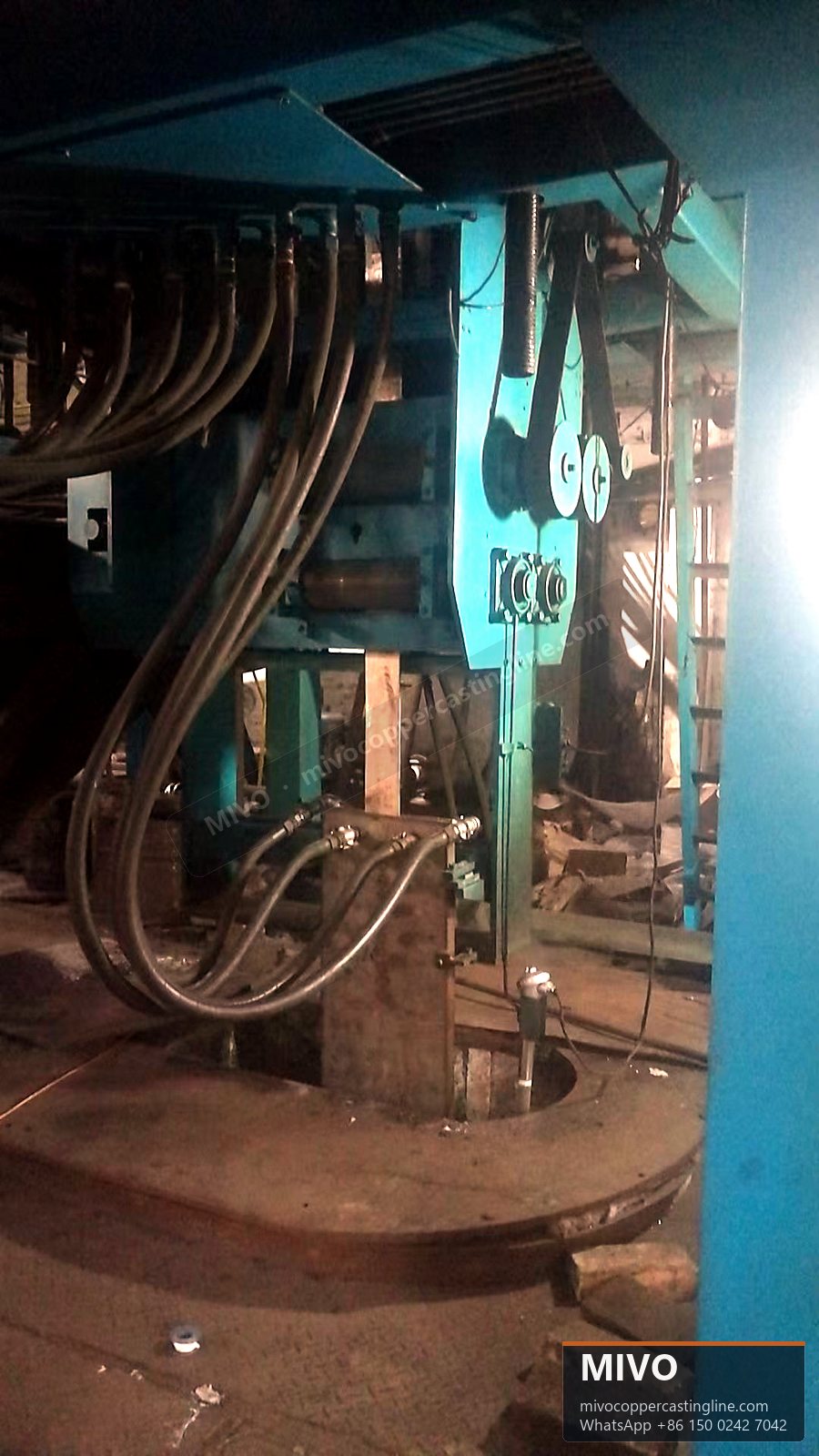

Single- or multi-strand withdrawal is reviewed against section, capacity, stability, and maintenance access.
Cooling-water quality, temperature, flow, pressure, heat rejection, and monitoring are confirmed with the plant.
The cast product can be directed to coiling or cut-to-length handling where the selected route permits.
Electrical controls, instrumentation, alarms, data functions, and local power requirements follow the ordered scope.
Configuration choices
| Decision | Typical options | Confirmed from |
|---|---|---|
| Furnace arrangement | Single or coordinated multi-furnace | Material, output, operating sequence |
| Strand arrangement | Single or multiple strands | Section, capacity, tooling, access |
| Product handling | Coiling or cut-to-length | Product form, dimensions, downstream use |
| Material acceptance | Customer standard and test agreement | Grade, sampling, method, acceptance value |
Product specification
Customized according to the required product size, material, capacity and project conditions.
Commercial boundary
The final quotation identifies what Mivo supplies, what remains optional, and what the buyer must prepare. This prevents a core-machine price from being compared with a complete-line scope without a common boundary.
Process design and startup support are available for selected products and alloy systems. The applicable process scope, technical documentation, commissioning support, and training requirements are confirmed after project review.
Quotation input
A product name alone is not enough to quote a copper upcasting machine. The following information lets the engineering team compare the line scope, utilities, output handling, and acceptance requirements on the same basis.
Buyer questions
Answers use project-review language because product form, alloy, utilities, and ordered scope change the final equipment configuration.
Machine often refers to the core casting and withdrawal equipment. Line or system normally describes the coordinated equipment from charging and furnaces through crystallization, cooling, handling, and controls. Mivo confirms the exact supply boundary in the quotation.
Reviewed routes include round copper rod, copper busbar and flat profiles, strip billet, tube or pipe billet, and selected drawing-based pure copper profiles. One machine configuration is not automatically suitable for every product form.
Oxygen-free copper or Cu-OF requirements can be reviewed, but the final material definition, sampling method, test method, acceptance value, raw material, and operating responsibility must follow the customer standard and technical agreement.
Price and total project cost depend on product dimensions, material specification, target capacity, furnace arrangement, strand count, cooling scope, coiling or cut-to-length equipment, control level, utilities, inspection, export delivery, and commissioning requirements.
Yes. The equipment is reviewed against the required product size, material, capacity, plant utilities, layout, downstream handling, and acceptance conditions. A drawing or product specification is required before a custom configuration is confirmed.
Process design and startup support are available for selected products and alloy systems. The applicable process scope, technical documentation, commissioning support, and training requirements are confirmed after project review.
Get in touch
Send the product drawing, material standard, capacity target, handling method, and available utilities. Mivo will review the suitable machine, line, and system boundary.
