Granted Patent CN113275523BUpward Casting Copper Busbar Crystallizer
CN113275523B Crystallizer for Upward Copper Busbar Casting
Product Overview
This crystallizer is a core component for the upward copper strip billet casting route. Its dual-section structure, S-type water channels, independent cooling cavities, and graphite-mold connection are covered by granted Chinese invention patent CN113275523B.
This product belongs to Mivo's upward copper busbar casting route. It should not be treated as the same component used in a semi-continuous billet line, a horizontal casting line, a resistance furnace, or a vacuum furnace. Replacement and retrofit enquiries require the existing drawing, interfaces, water conditions, and target section.
Invention Patent — Upward Casting Copper Strip Billet Crystallizer and Casting Method
The patent belongs to the upward-casting copper strip-billet crystallizer and casting-method route. Product dimensions, operating information, interfaces, and acceptance conditions are available after drawing and project review.
Project Information
Send the target busbar or strip-billet drawing, existing interfaces, cooling-water conditions, quantity, and equipment information for technical review.
Technical Features

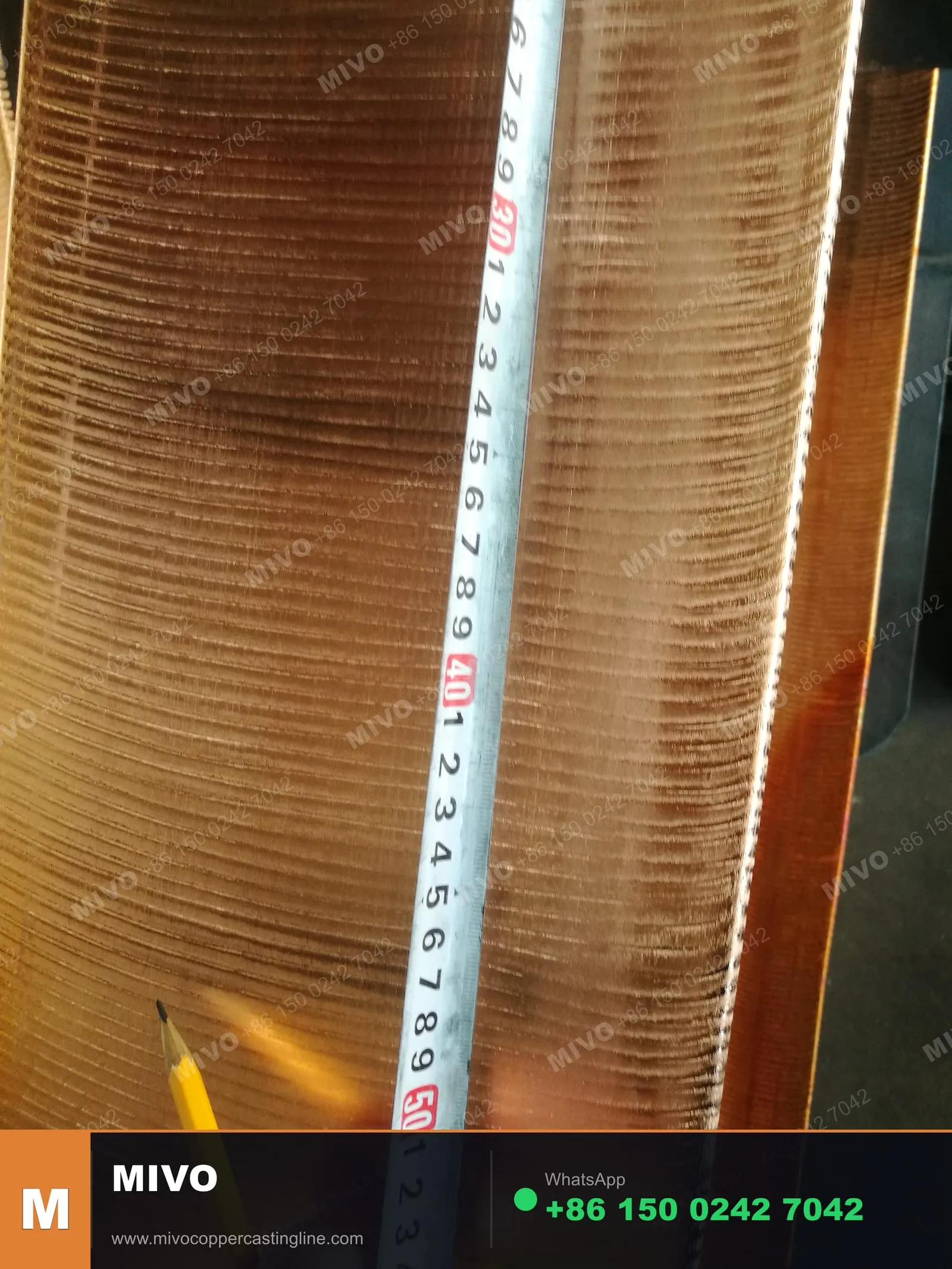

- Granted Chinese invention patent CN113275523B - S-type water-channel geometry
- Patent scope and application boundary explained on the Technology page
- Dual-section sealed structure — stainless steel upper, copper block lower
- Connected upper and lower sections via water pipes for integrated cooling

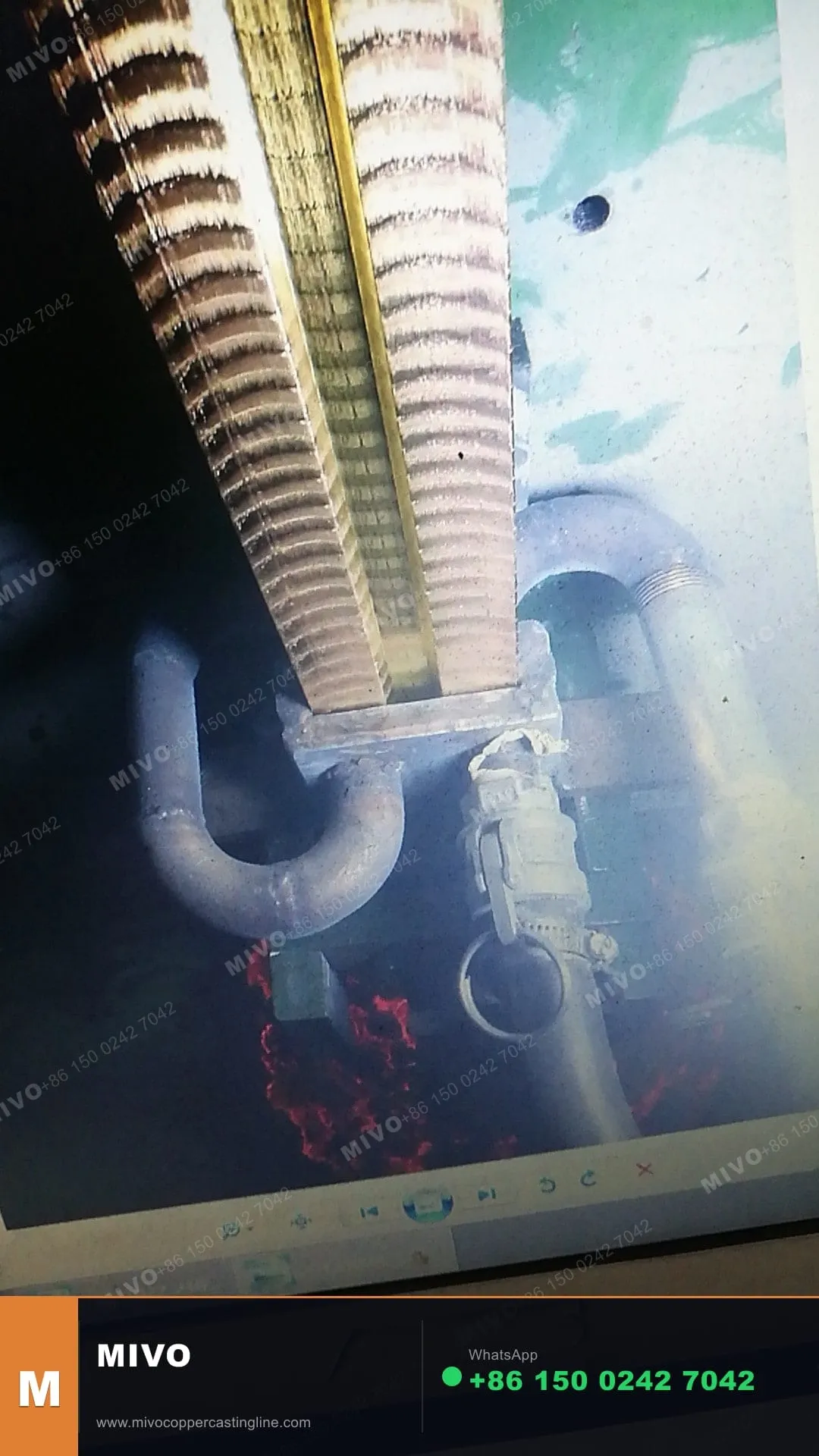

- Symmetric dual water inlet/outlet ports on copper cover plate
- Graphite mold connected directly to lower copper block via substrate passages
Applications
- Upward continuous casting lines for copper busbar
- Replacement crystallizer for existing casting equipment
- Existing-line crystallizer review and capacity-upgrade projects
- Multi-strand busbar casting configurations
- Oxygen-free copper busbar casting
Crystallizer
Available as a standalone replacement component or as part of a complete casting line.
Request Technical Review Discuss Your ProjectRelated Products
Patent Reference
CN113275523B, granted 4 November 2022, covers the crystallizer's S-type water-channel geometry, dual-section structure, and associated casting method.
