Upward Continuous Casting Component

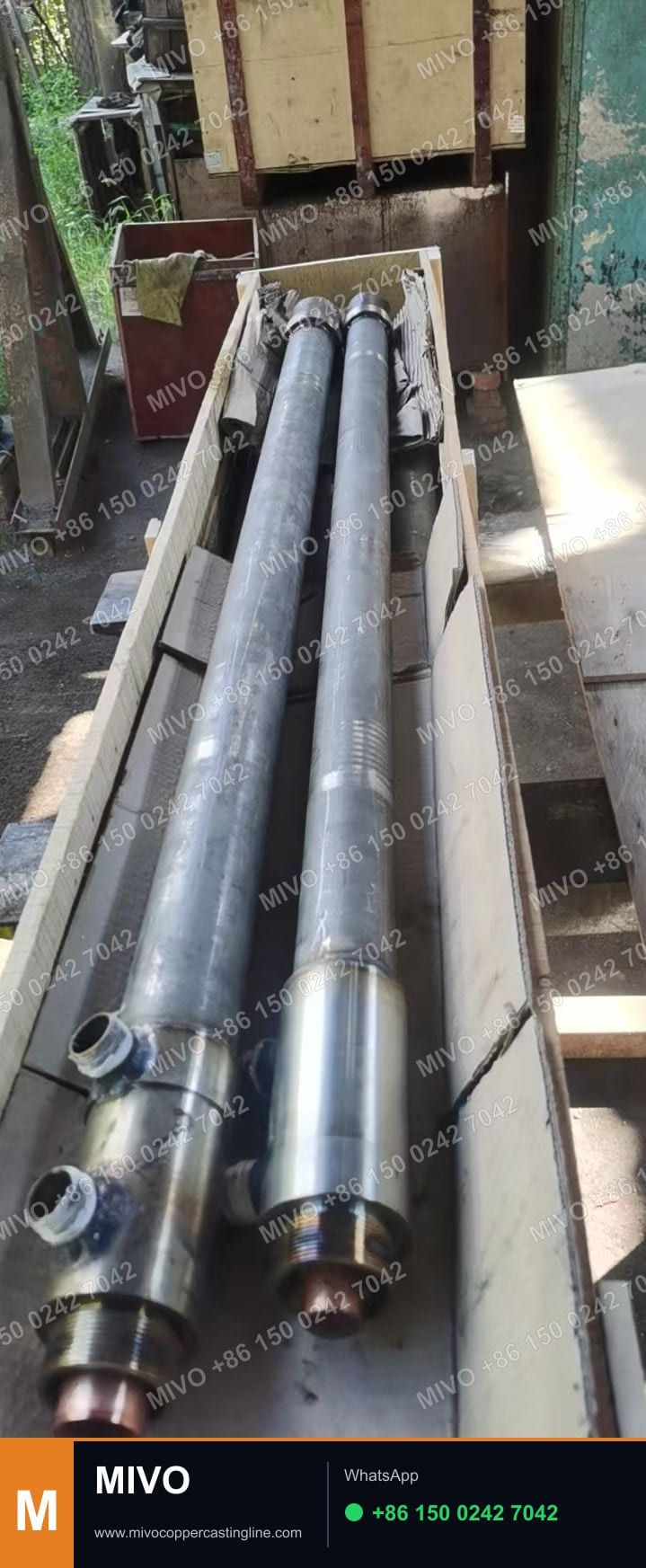

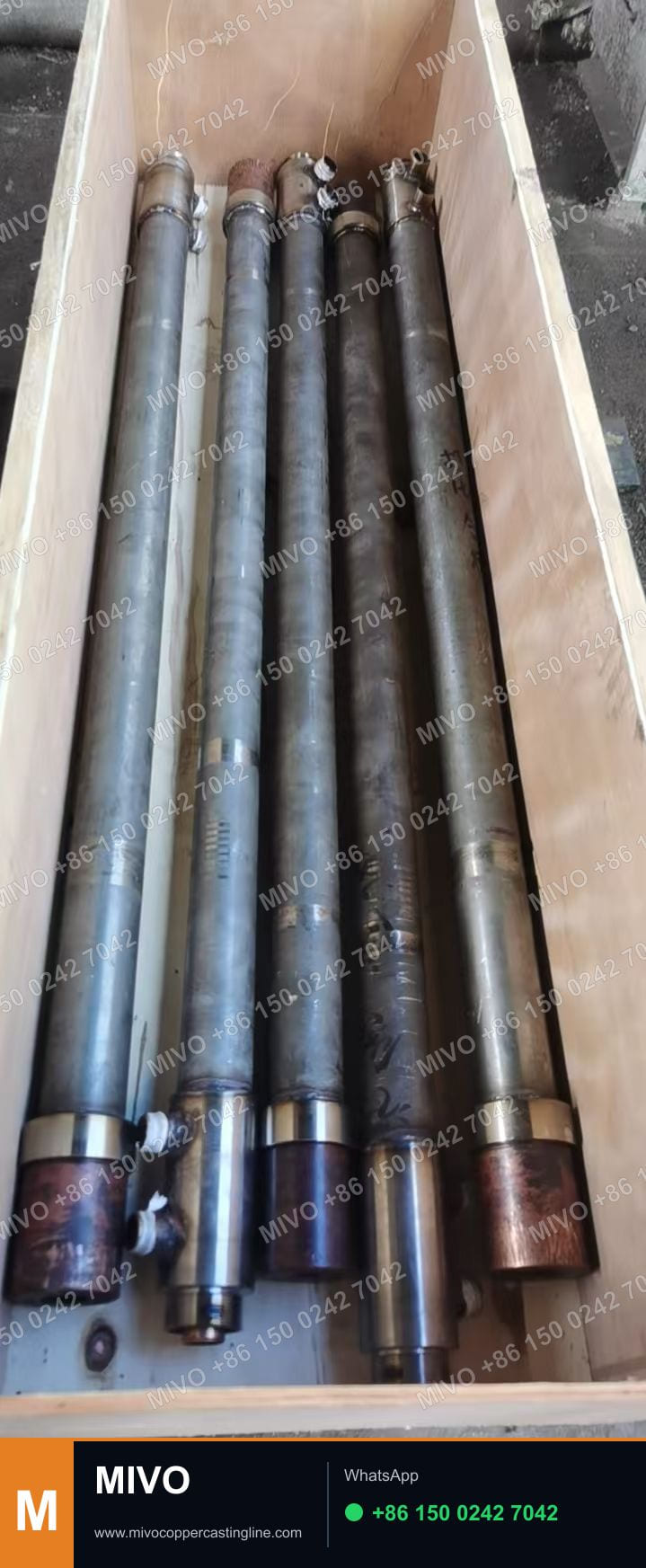

Copper Rod Upcast Crystallizer and Cooler
Water-cooled crystallizer and cooler assemblies for oxygen-free copper rod upward continuous casting, custom manufactured after product, drawing, interface, and cooling-water review.
What This Product Is
The assembly works with a graphite die and protective sleeve at the casting interface. Cooling through the crystallizer removes heat while the solidifying copper rod is withdrawn upward under the line's agreed operating sequence.
Copper rod from this process is feedstock for downstream wire drawing, rolling, or other processing. It should not be described as finished copper wire.
- Process
- Copper rod upward continuous casting
- Output
- Oxygen-free copper rod feedstock
- Rod diameter
- Project specific; available after drawing review
- Supply route
- Replacement, spare set, retrofit review, or new-line component
Send a Drawing or Sample Dimensions
Compatibility is confirmed from approved interfaces and project conditions, not from rod diameter alone.
Request Technical ReviewManufacturing Review
Copper Rod Crystallizer Configuration
Rod diameter alone does not define compatibility. Final dimensions, interfaces, materials, water connections, quantity, and acceptance requirements are fixed only after drawing approval.
Interfaces
Overall geometry, mounting, graphite tooling, and equipment connection
Cooling
Water inlet and outlet, flow conditions, water quality, and test method
Supply scope
Replacement, spare set, retrofit review, or new-line component
Component Boundary
Crystallizer, Cooler, and Graphite Interface
In copper rod upcasting, the terms crystallizer and cooler may be used for the water-cooled assembly surrounding the casting interface. The graphite die defines the cast rod section, while the protective sleeve and matched interfaces form part of the local assembly arrangement.
These parts are related but are not automatically interchangeable between machines. The approved supply list should state whether the order includes only the water-cooled assembly or also includes graphite dies, protective sleeves, connection parts, and recommended spares.
Water-cooled assembly
External body, copper head, and agreed water connections
Graphite die
Matched to the target rod section and approved interface
Protective sleeve
Confirmed with the die and local assembly arrangement
Related line scope
Withdrawal, coiling, cooling, control, and furnace scope reviewed separately
Replacement or New Project
Two Different Engineering Routes
Replacement Crystallizer
Review starts from the existing drawing, sample, equipment reference, external dimensions, mounting position, water connections, graphite interface, and required quantity. Mivo does not describe a component as compatible until the relevant interfaces are approved.
New Upcast Project
Review starts from the target rod diameter, feed material, output target, strand arrangement, furnace and coiling scope, workshop layout, local power supply, cooling-water conditions, and required service boundary.
Retrofit Review
A retrofit requires both the existing-machine interfaces and the intended production change. Feasibility, included modifications, performance conditions, and acceptance responsibilities are agreed before manufacture.
Buyer Checklist
Information Confirmed Before Manufacture
More complete inputs reduce repeated drawing revisions and help separate the crystallizer scope from graphite tooling, line equipment, installation, and commissioning responsibilities.
| Confirmation item | Information to provide |
|---|---|
| Target product | Required copper rod diameter or diameter range |
| Existing assembly | Approved drawing, readable dimensions, or a sample available for review |
| External geometry | Overall length, copper-head geometry, mounting position, and available space |
| Water connections | Inlet and outlet position, connection type, and site cooling-water conditions |
| Graphite interface | Graphite-die and protective-sleeve dimensions or matching drawing |
| Line arrangement | Strand count, quantity required, withdrawal arrangement, and equipment reference |
| Project boundary | Replacement component, spare set, retrofit review, or complete-line requirement |
Quality and Handover
Agreed Checks Without Publishing Proprietary Design
Inspection items and acceptance methods are stated in the approved technical documents. Public website content describes the check categories without disclosing internal water-channel design, manufacturing tolerances, material recipes, or process settings.
Drawing and version review
Confirm the approved revision, quantity, marked interfaces, and supply boundary before production.
External interface checks
Review agreed overall dimensions, connection positions, and graphite or equipment interfaces.
Water-circuit test scope
Leak or pressure-test method and acceptance conditions can be included when stated in the technical agreement.
Packing and identification
Agree component identification, moisture protection, export packing, and the accompanying document set.
Installation coordination
Clarify installation references, buyer site preparation, and responsibilities before shipment.
Commissioning support
Cold checks, hot commissioning, trial production, training, and remote follow-up are included only as contracted.
Related Casting Equipment
Review the separate process and component pages before defining the final project scope.
Copper Rod Crystallizer FAQ
Questions from Upcast Equipment Buyers
These answers separate rod diameter, machine compatibility, graphite tooling, and project responsibilities before quotation.
What does a copper rod upcast crystallizer produce?
It supports upward continuous casting of oxygen-free copper rod. The cast rod is normally feedstock for downstream wire drawing, rolling, or other processing; it is not finished copper wire.
Can Mivo manufacture a replacement for an existing upcast machine?
A replacement can be reviewed from an approved drawing, readable interface dimensions, clear photographs, or an available sample. Compatibility is confirmed during drawing review rather than assumed from rod diameter alone.
Are copper rod crystallizers universally interchangeable by diameter?
No. Rod diameter is only one input. Outer-tube length, copper-head geometry, water connections, graphite-die interface, mounting arrangement, strand layout, and cooling conditions can differ between lines.
Can the graphite die and protective sleeve be supplied with the crystallizer?
The required component boundary can be reviewed with the enquiry. The crystallizer assembly, graphite die, protective sleeve, spare quantity, and related interfaces must be listed in the approved supply scope.
What information is needed for a copper rod crystallizer quotation?
Send the rod diameter, required quantity, existing drawing or sample dimensions, overall length, water-port details, graphite interface, strand count, equipment photographs, destination country, and required delivery scope.
Can the crystallizer be supplied as part of a complete copper rod upcast project?
Yes. Mivo can review the crystallizer as a replacement component or within a project-configured upward casting scope. Furnace, withdrawal, coiling, cooling, control, commissioning, and training responsibilities are confirmed separately in the technical agreement.
